Universal Bellows, Compact
Product information "Universal Bellows, Compact "

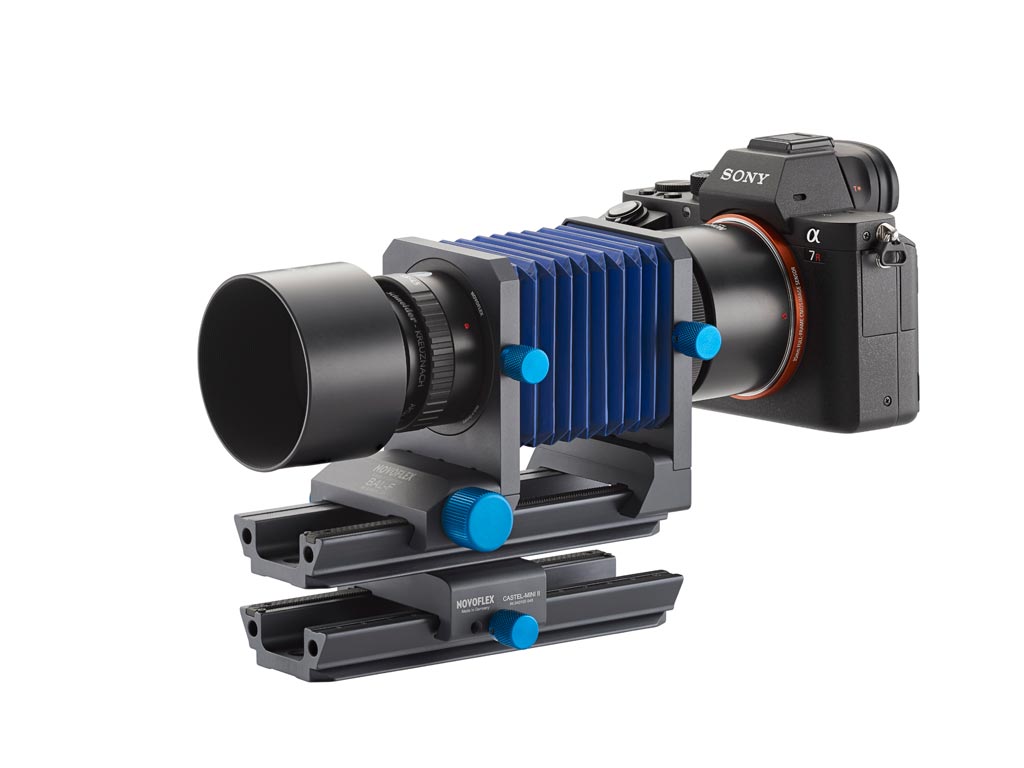

The NOVOFLEX Universal Bellows unit BAL-F is certainly one of the smallest and most versatile bellows units on the market. Thanks to a complete adapter ring system, almost any combination of different camera and lens systems is possible.
Function of a bellows device in general:
1. Stepless extension = distance between sensor/film plane and lens (= image distance); thus format-filling photographing of smaller objects possible.
2. With the Schneider Kreuznach lens Apo Digitar 4.5/90 stepless adjustment from infinity to 1:1 with 35mm camera.
3. Telephoto lenses focus much closer than their near focusing range (without bellows); therefore tele-perspective in the close-up range and above all long working distance (no disturbance of the object, space for additional lighting).
4. With standard- and especially wide-angle lenses (from the camera range) enlarged images = macro shooting; over 1:1 to about 7:1
5. On the tripod: a separate focusing rack (CASTEL series) is used to focus without changing the bellows extension (= frame size) or the tripod; i.e. the zone of sharpness can be adjusted, while the magnification remains constant.
Adapters for cameras and lenses need to be ordered separately
Technical specifications:
Size: h = 103mm, w = 130mm, l = 180mm
Min. Extension: 29mm
Max. Extension: 116mm
Tripod connection: 1/4 " and 3/8" and ARCA UniQ/C-compatible dovetail profile
Function of a bellows device in general:
1. Stepless extension = distance between sensor/film plane and lens (= image distance); thus format-filling photographing of smaller objects possible.
2. With the Schneider Kreuznach lens Apo Digitar 4.5/90 stepless adjustment from infinity to 1:1 with 35mm camera.
3. Telephoto lenses focus much closer than their near focusing range (without bellows); therefore tele-perspective in the close-up range and above all long working distance (no disturbance of the object, space for additional lighting).
4. With standard- and especially wide-angle lenses (from the camera range) enlarged images = macro shooting; over 1:1 to about 7:1
5. On the tripod: a separate focusing rack (CASTEL series) is used to focus without changing the bellows extension (= frame size) or the tripod; i.e. the zone of sharpness can be adjusted, while the magnification remains constant.
Adapters for cameras and lenses need to be ordered separately
Technical specifications:
Size: h = 103mm, w = 130mm, l = 180mm
Min. Extension: 29mm
Max. Extension: 116mm
Tripod connection: 1/4 " and 3/8" and ARCA UniQ/C-compatible dovetail profile
| ARCA-compatible: | yes |
|---|---|
| Dimensions LxWxH: | 18x13x10.3cm / 7x5.1x4" |
| Full communication between camera and lens: | available w/ optional accessories |
| Lower connector: | 1/4"-20, 3/8"-16 |
| Tilt/Shift-Movements: | no |
| Weight: | 445g / 0.9 lbs. |
| max. Extension (excl. adapters): | 116mm |
| min. Extension (excl. adapters): | 29mm |
