BALPRO 1 - dual bellows kit for extreme magnifications
Product information "BALPRO 1 - dual bellows kit for extreme magnifications"

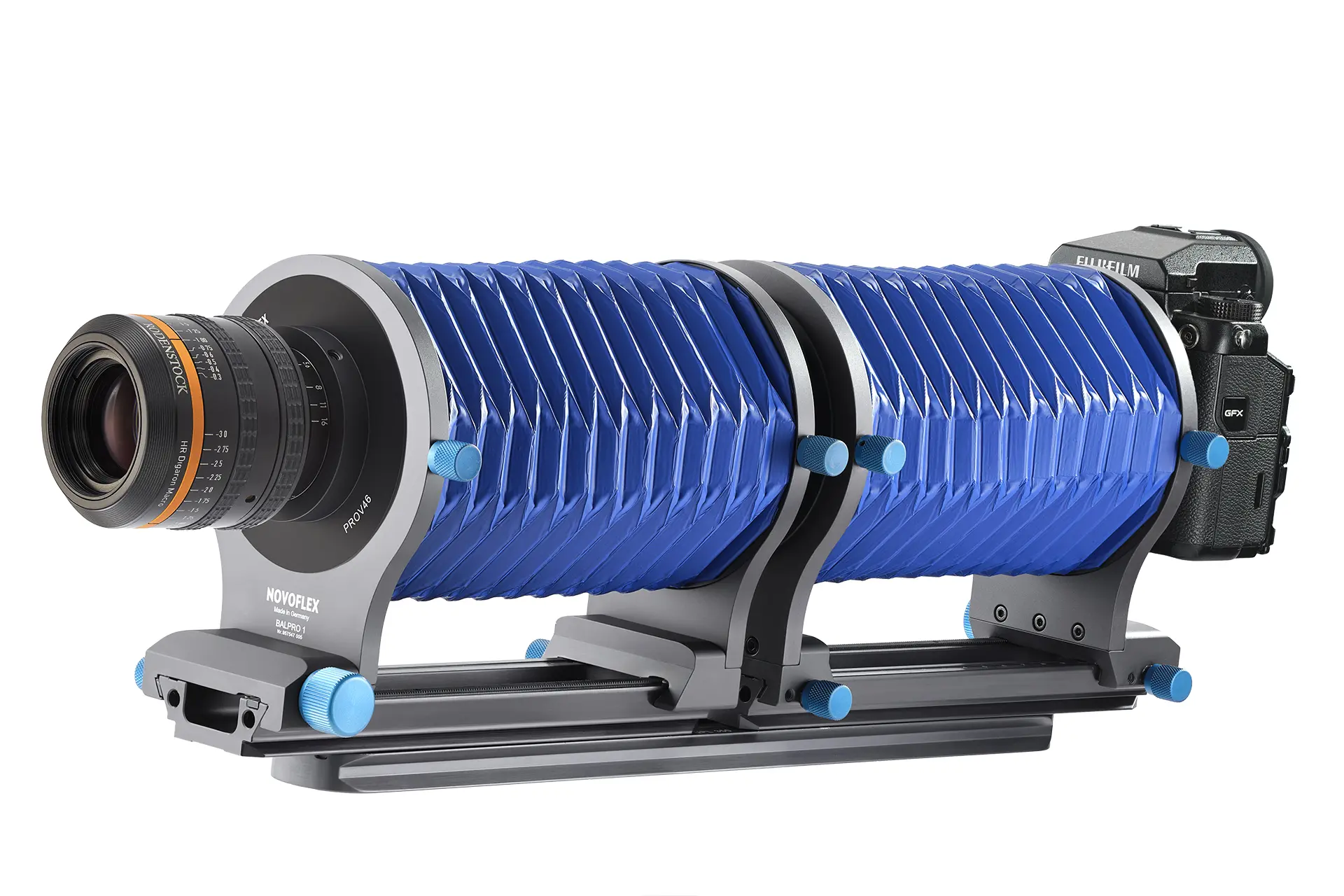

for extreme magnifications This specially configured dual kit significantly expands the capabilities of the BALPRO system and is designed for applications requiring exceptionally large magnifications. By combining two BALPRO 1 bellows units, it provides an extended and precisely controllable draw length.
The two bellows are connected via a dedicated light-tight coupling adapter. An additional stabilization rail ensures exact parallel alignment and high mechanical rigidity, even at maximum extension.
This setup is ideal whenever a single bellows reaches its limits, for example:
-For very high magnifications well beyond 1:1
-When using conventionally designed lenses that require long extension, such as the Rodenstock HR Digaron Macro 105 mm f/5.6 and similar optics
-In demanding reproduction and macro applications requiring maximum control over magnification
The dual bellows kit remains fully compatible with the modular BALPRO system and can be flexibly expanded with existing or additional accessories.
Please note: Camera mount adapters and lens boards are not included and must be ordered separately.

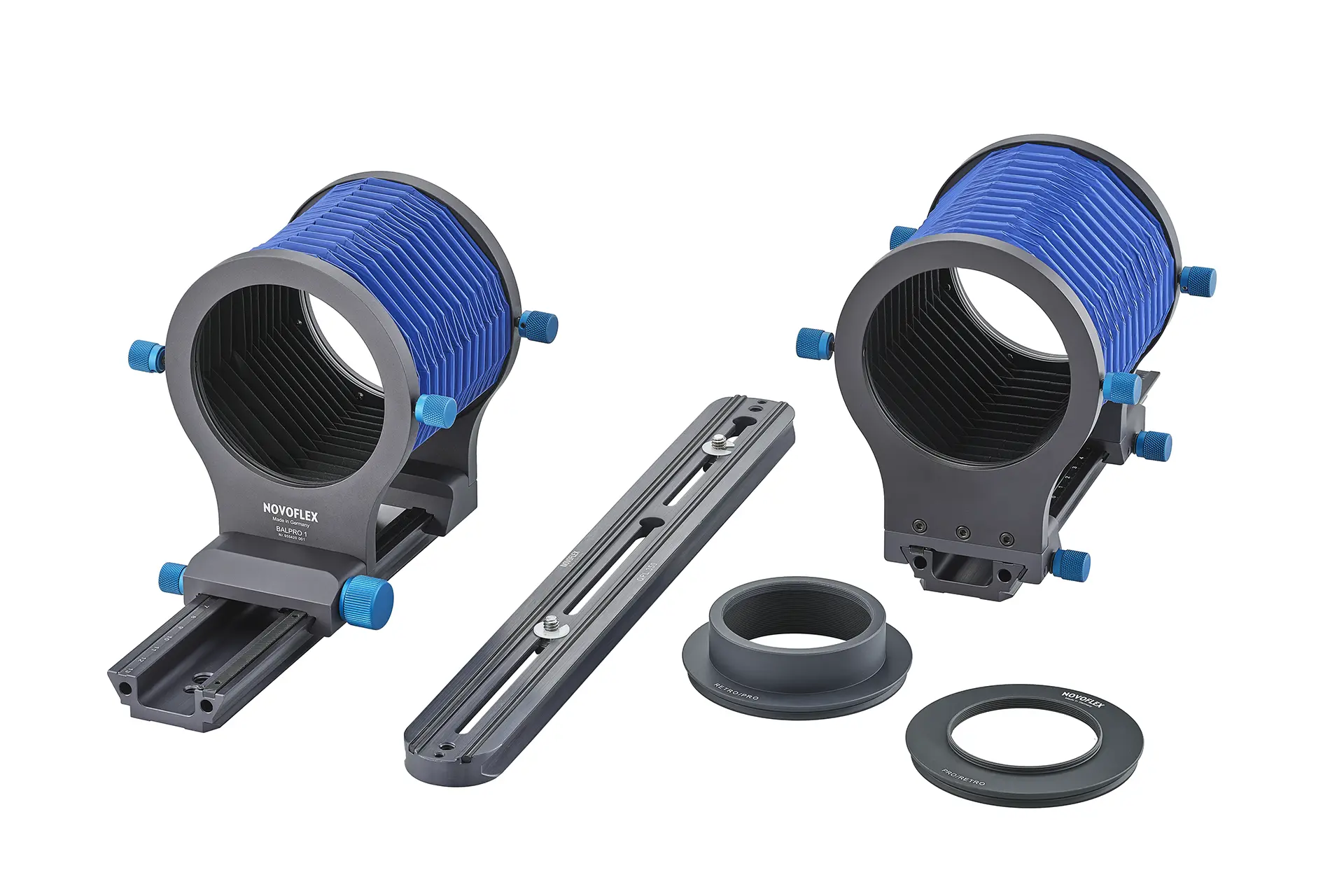

Scope of delivery:
-2x BALPRO 1
-QPL-stabilization rail
-light-tight coupling adapter
The two bellows are connected via a dedicated light-tight coupling adapter. An additional stabilization rail ensures exact parallel alignment and high mechanical rigidity, even at maximum extension.
This setup is ideal whenever a single bellows reaches its limits, for example:
-For very high magnifications well beyond 1:1
-When using conventionally designed lenses that require long extension, such as the Rodenstock HR Digaron Macro 105 mm f/5.6 and similar optics
-In demanding reproduction and macro applications requiring maximum control over magnification
The dual bellows kit remains fully compatible with the modular BALPRO system and can be flexibly expanded with existing or additional accessories.
Please note: Camera mount adapters and lens boards are not included and must be ordered separately.
Scope of delivery:
-2x BALPRO 1
-QPL-stabilization rail
-light-tight coupling adapter
| ARCA-compatible: | yes |
|---|---|
| Dimensions LxWxH: | 20x11.5x15cm / 7.9x4.5x5.9" |
| Focusing Rails: | optionally available, not built-in |
| Full communication between camera and lens: | available w/ optional accessories |
| Lower connector: | 1/4"-20, 3/8"-16 |
| Tilt/Shift-Movements: | no |
| Weight: | 755g / 1.7 lbs. |
| max. Extension (excl. adapters): | 170mm |
| min. Extension (excl. adapters): | 30mm |
